Description

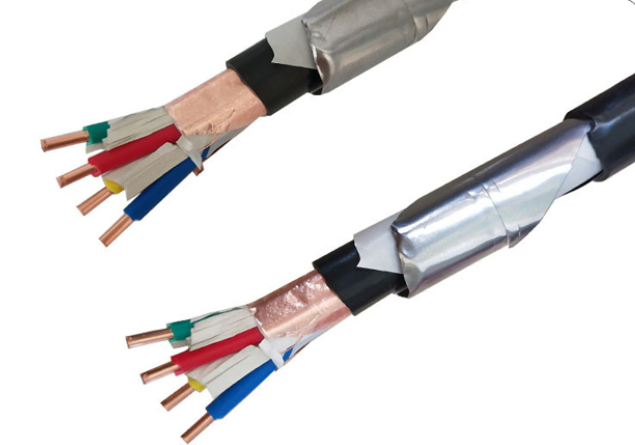

控制電纜KVVP2-22-61*1.5
一、產品型號
| 型號 | 名稱 |
| KVV | 銅芯聚氯乙烯絕緣聚氯乙烯護套控制電纜 |
| KVVP | 銅芯聚氯乙烯絕緣聚氯乙烯護套編織屏蔽控制電纜 |
| KVVP2 | 銅芯聚氯乙烯絕緣聚氯乙烯護套銅帶屏蔽控制電纜 |
| KVV22 | 銅芯聚氯乙烯絕緣鋼帶鎧裝聚氯乙烯護套控制電纜 |
| KVVR | 銅芯聚氯乙烯絕緣聚氯乙烯護套控制軟電纜 |
| KVVRP | 銅芯聚氯乙烯絕緣聚氯乙烯護套編織屏蔽控制軟電纜 |
| ZR-KVV | 銅芯聚氯乙烯絕緣聚氯乙烯護套阻燃控制電纜 |
| ZR-KVV22 | 銅芯聚氯乙烯絕緣鋼帶鎧裝聚氯乙烯護套阻燃控制電纜 |
| ZR-KVVRP | 銅芯聚氯乙烯絕緣聚氯乙烯護套編織屏蔽阻燃控制軟電纜 |
二、產品執行標準
GB/T9330-2008《塑料絕緣控制電纜》
GB/T12666-2005《阻燃和耐火電線電纜通則》
三、產品應用范圍
控制電纜KVVP2-22-61*1.5是適用于工礦企業、能源交通部門、供交流額定電壓450/750伏以下控制、保護線路等場合使用的聚氯乙烯絕緣、聚氯乙烯護套控制電纜。
四、控制電纜KVVP2-22-61*1.5產品使用特性
1.絕緣電氣強度：導體之間1min 1kv不擊穿 導體與屏蔽1min 3kv不擊穿
2.絕緣電阻：每根芯線與其余線芯接地，控制電纜大于10000MΩ.km,HYAT電纜大于3000MΩ.km。
3.工作電容：平均值 52±2nF/km
4.遠端串音防衛度：150kHZ時指定組合的功率平均值大于69dB/km。
5.控制電纜傳輸控制信號用，芯數較多，根據標準來講多的有61芯，但也可以根據用戶要求生產。
五、產品技術參數表
標稱截面積 | 絕緣標稱厚度 | 護套標稱厚度 | 平均外徑 mm | 20℃直流電阻 | 近似重量 | |
下限 | 上限 | |||||
2×0.75 | 0.6 | 1.2 | 6.7 | 8.1 | 24.5 | 59 |
2×1.0 | 0.6 | 1.2 | 7.0 | 8.5 | 18.1 | 67 |
2×1.5 | 0.7 | 1.2 | 7.9 | 9.5 | 12.1 | 86 |
2×2.5 | 0.8 | 1.2 | 9.0 | 10.9 | 7.41 | 120 |
2×4 | 0.8 | 1.2 | 9.9 | 11.9 | 4.61 | 167 |
2×6 | 0.8 | 1.2 | 10.8 | 13.1 | 3.08 | 220 |
3×0.75 | 0.6 | 1.2 | 7.1 | 8.5 | 24.5 | 71 |
3×1.0 | 0.6 | 1.2 | 7.4 | 8.9 | 18.1 | 82 |
3×1.5 | 0.7 | 1.2 | 8.3 | 10.0 | 12.1 | 108 |
3×2.5 | 0.8 | 1.2 | 9.5 | 11.5 | 7.41 | 154 |
3×4 | 0.8 | 1.2 | 10.5 | 12.4 | 4.61 | 210 |
3×6 | 0.8 | 1.2 | 11.5 | 13.9 | 3.08 | 310 |
4×0.75 | 0.6 | 1.2 | 7.6 | 9.2 | 24.5 | 846 |
4×1.0 | 0.6 | 1.2 | 7.9 | 9.6 | 18.1 | 100 |
4×1.5 | 0.7 | 1.2 | 9.0 | 10.9 | 12.1 | 132 |
4×2.5 | 0.8 | 1.2 | 10.4 | 12.5 | 7.41 | 193 |
4×4 | 0.8 | 1.5 | 11.4 | 13.8 | 4.61 | 315 |
4×6 | 0.8 | 1.5 | 13.2 | 15.9 | 3.08 | 413 |
5×0.75 | 0.6 | 1.2 | 8.2 | 9.9 | 24.5 | 99 |
5×1.0 | 0.6 | 1.2 | 8.6 | 10.3 | 18.1 | 116 |
5×1.5 | 0.7 | 1.2 | 9.7 | 11.7 | 12.1 | 154 |
5×2.5 | 0.8 | 1.5 | 11.3 | 13.6 | 7.41 | 243 |
5×4 | 0.8 | 1.5 | 13.0 | 15.7 | 4.61 | 383 |
5×6 | 0.8 | 1.5 | 14.3 | 17.3 | 3.08 | 505 |
7×0.75 | 0.6 | 1.2 | 8.8 | 10.6 | 24.5 | 123 |
7×1.0 | 0.6 | 1.2 | 9.2 | 11.1 | 18.1 | 146 |
7×1.5 | 0.7 | 1.2 | 10.5 | 12.7 | 12.1 | 196 |
7×2.5 | 0.8 | 1.5 | 12.8 | 15.5 | 7.41 | 211 |
7×4 | 0.8 | 1.5 | 14.1 | 17.1 | 4.61 | 473 |
7×6 | 0.8 | 1.5 | 15.6 | 18.8 | 3.08 | 652 |
8×0.75 | 0.6 | 1.2 | 9.7 | 11.7 | 24.5 | 142 |
8×1.0 | 0.6 | 1.2 | 10.2 | 12.3 | 18.1 | 1168 |
8×1.5 | 0.7 | 1.5 | 11.7 | 14.1 | 12.1 | 243 |
8×2.5 | 0.8 | 1.5 | 14.3 | 17.2 | 7.41 | 360 |
8×4 | 0.8 | 1.5 | 15.8 | 19.0 | 4.61 | 545 |
8×6 | 0.8 | 1.7 | 17.4 | 21.0 | 3.08 | 748 |
10×0.75 | 0.6 | 1.2 | 10.8 | 13.1 | 24.5 | 187 |
10×1.0 | 0.6 | 1.5 | 11.4 | 13.8 | 18.1 | 221 |
10×1.5 | 0.7 | 1.5 | 13.7 | 16.6 | 12.1 | 296 |
10×2.5 | 0.8 | 1.5 | 16.0 | 19.4 | 7.41 | 440 |
10×4 | 0.8 | 1.7 | 17.8 | 21.5 | 4.61 | 721 |
10×6 | 0.8 | 1.7 | 20.1 | 24.2 | 3.08 | 956 |
12×0.75 | 0.6 | 1.5 | 11.2 | 13.5 | 24.5 | 211 |
12×1.0 | 0.6 | 1.5 | 11.8 | 14.2 | 18.1 | 250 |
12×1.5 | 0.7 | 1.5 | 14.2 | 17.1 | 12.1 | 338 |
12×2.5 | 0.8 | 1.5 | 16.5 | 20.0 | 7.41 | 507 |
12×4 | 0.8 | 1.7 | 18.7 | 22.6 | 4.61 | 825 |
12×6 | 0.8 | 1.7 | 20.7 | 25.0 | 3.08 | 1026 |
14×0.75 | 0.6 | 1.5 | 11.7 | 14.1 | 24.5 | 238 |
14×1.0 | 0.6 | 1.5 | 12.9 | 15.6 | 18.1 | 328 |
14×1.5 | 0.7 | 1.5 | 14.8 | 17.9 | 12.1 | 384 |
14×2.5 | 0.8 | 1.5 | 17.4 | 21.0 | 7.41 | 579 |
14×4 | 0.8 | 1.7 | 19.6 | 23.7 | 4.61 | 959 |
14×6 | 0.8 | 1.7 | 21.8 | 26.3 | 3.08 | 1246 |
16×0.75 | 0.6 | 1.5 | 12.9 | 15.5 | 24.5 | 268 |
16×1.0 | 0.6 | 1.5 | 13.5 | 16.4 | 18.1 | 315 |
16×1.5 | 0.7 | 1.5 | 15.6 | 18.8 | 12.1 | 427 |
16×2.5 | 0.8 | 1.7 | 18.3 | 22.1 | 7.41 | 664 |
19×0.75 | 0.6 | 1.5 | 13.5 | 16.3 | 24.5 | 299 |
19×1.0 | 0.6 | 1.5 | 14.2 | 17.2 | 18.1 | 359 |
19×1.5 | 0.7 | 1.5 | 16.4 | 19.8 | 12.1 | 490 |
19×2.5 | 0.8 | 1.7 | 19.6 | 23.7 | 7.41 | 765 |
24×0.75 | 0.6 | 1.5 | 15.6 | 18.8 | 24.5 | 373 |
24×1.0 | 0.6 | 1.5 | 16.4 | 19.8 | 18.1 | 447 |
24×1.5 | 0.7 | 1.7 | 19.4 | 23.4 | 12.1 | 632 |
24×2.5 | 0.8 | 1.7 | 22.8 | 27.6 | 7.41 | 961 |
27×0.75 | 0.6 | 1.5 | 15.9 | 19.2 | 24.5 | 407 |
27×1.0 | 0.6 | 1.5 | 16.7 | 20.2 | 18.1 | 491 |
27×1.5 | 0.7 | 1.7 | 19.8 | 23.9 | 12.1 | 674 |
27×2.5 | 0.8 | 1.7 | 23.3 | 28.2 | 7.41 | 1061 |
30×0.75 | 0.6 | 1.5 | 16.4 | 19.8 | 24.5 | 445 |
30×1.0 | 0.6 | 1.7 | 17.5 | 20.5 | 18.1 | 554 |
30×1.5 | 0.7 | 1.7 | 20.0 | 23.0 | 12.1 | 761 |
30×2.5 | 0.8 | 1.7 | 24.0 | 27.0 | 7.41 | 1167 |
37×0.75 | 0.6 | 1.7 | 17.5 | 20.5 | 24.5 | 544 |
37×1.0 | 0.6 | 1.7 | 19.0 | 23.0 | 18.1 | 658 |
37×1.5 | 0.7 | 1.7 | 22.0 | 26.6 | 12.1 | 908 |
37×2.5 | 0.8 | 1.7 | 26.1 | 31.5 | 7.41 | 1401 |
44×0.75 | 0.6 | 1.7 | 20.1 | 24.2 | 24.5 | 642 |
44×1.0 | 0.6 | 1.7 | 21.2 | 25.6 | 18.1 | 777 |
44×1.5 | 0.7 | 1.7 | 24.7 | 29.8 | 12.1 | 1074 |
44×2.5 | 0.8 | 2.0 | 29.9 | 36.1 | 7.41 | 1702 |
52×0.75 | 0.6 | 1.7 | 20.9 | 25.3 | 24.5 | 737 |
52×1.0 | 0.6 | 1.7 | 22.1 | 26.7 | 18.1 | 896 |
52×1.5 | 0.7 | 1.7 | 25.8 | 31.1 | 12.1 | 1243 |
52×2.5 | 0.8 | 2.0 | 31.2 | 37.7 | 7.41 | 1973 |
61×0.75 | 0.6 | 1.7 | 21.9 | 26.5 | 24.5 | 843 |
61×1.0 | 0.6 | 1.7 | 23.2 | 28.0 | 18.1 | 1027 |
61×1.5 | 0.7 | 2.0 | 27.0 | 32.7 | 12.1 | 1468 |
61×2.5 | 0.8 | 2.2 | 33.1 | 40.0 | 7.41 | 2306 |
